V6 Strada Cargo Bike

Two Frames

Low step (ST version) and high tube, with 26" wheels.


Compact Dimensions

The size of a conventional bike but with a large cargo capacity.


Reinforced

Specifically designed for cargo transport with a reinforced frame.

Frame

Alloy 6061-T6 frame, internal cable routing

Oversized alloy fork, conical, 9mm

Adjustable stem, L90mm

Semi-integrated steering


Rear Derailleur

Shimano Alfine SLS700, 11-speed shifter

Shimano Alfine 11-speed Internal Gear Hub

Alloy bottom bracket, 170mm, 38T

Alfine cogset, 20T

KMC Z1e chain


Brakes

Front Shimano MT200, 2-piston, 180mm

Rear Shimano MT200, 2-piston, 160mm


Wheels

Alloy wheels, 26″, double wall

Schwalbe Big Ben Plus tires, 26″ x 2.15

Shimano Alfine SGS7001 hubs, 11-speed


Seat

Royal Vivo saddle

Hydraulic Dropper seat post, D31.6, 125mm travel


Cockpit

Alloy handlebar, L680mm, D31.8mm

OXO comfort grips


Technology

540Wh battery, 36V x 20Ah

BH 1E-36V motor, 80Nm

Range up to 90 km

OLED display


Accessories

Front light Yes

Rear light Yes

Mudguards Yes

Luggage rack Yes

Kickstand Yes

Bell Yes

Basket Yes


Display

Wheel reflectors Yes

Seat Post

Telescopic seat post (125mm)


Frame

2 frame versions, 1 sizeAdjustable stem

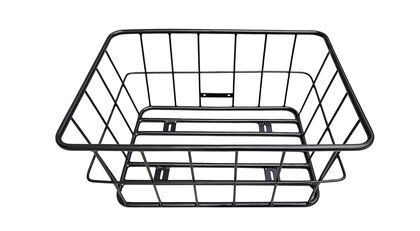

Front Basket

Front basket (300x300cm)


Fork

Oversized rigid aluminum fork


Brakes

Shimano MT200, 2-piston (Front: 180mm, Rear: 160mm)


Motor & Battery

BH 1E-36V motor (80Nm) + 540Wh battery


Frame Cables

Integrated wiring throughout the frame


Luggage Rack

Specific luggage rack, compatible with MIK system


Lock

AXA lock


Rear Hub

Shimano Alfine 11-speed (409% gear range)


Tires

Schwalbe Big Ben Plus, 26" x 2.25
